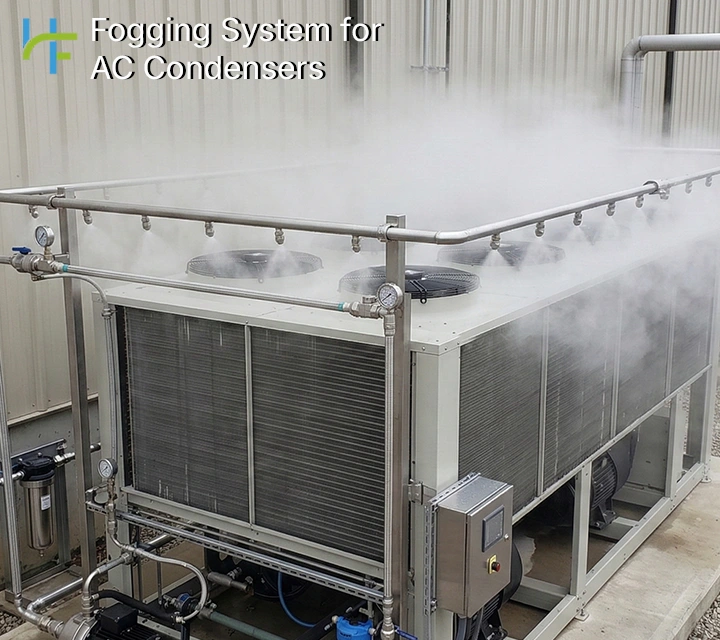

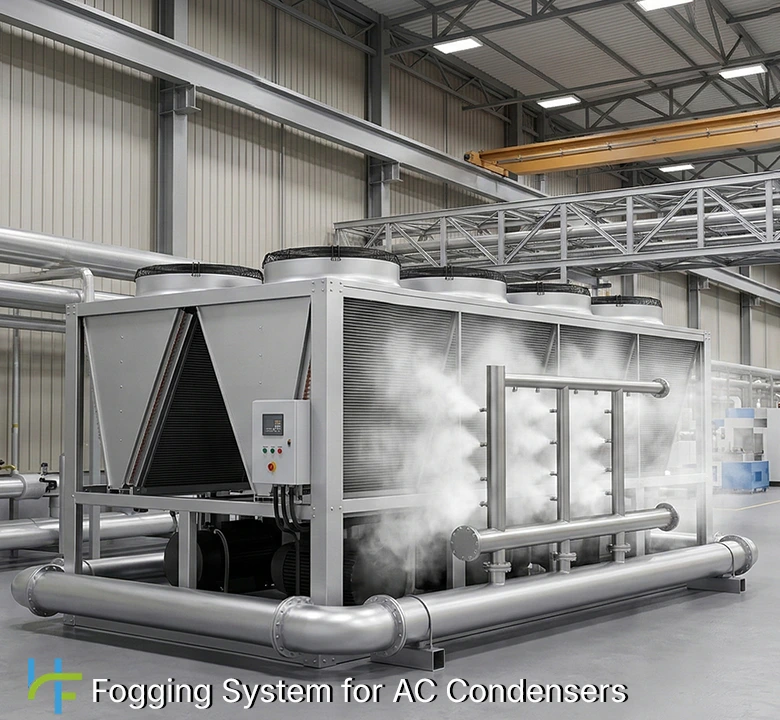

Advanced Fogging Systems for HVAC Condenser Units
Humifogg Systems provides dependable, low-maintenance, high-performance fogging solutions for commercial and industrial HVAC systems. The systems spray water in ultra-fine micron-sized particles around AC condenser coils without wetting the surfaces. This pre-cooling mist cools down the air temperature before heat exchange, enabling condensers to release heat faster and improve their cooling efficiency. Therefore, they work more reliably even under extremely hot outdoor conditions.
By reducing the load on your AC chiller and condenser units, Humifogg Systems help in reducing power consumption, save up to 10-20% on electricity, while maintaining steady performance throughout the day. With precision in design, our high-pressure stainless steel systems are highly resistant to corrosion, easy to maintain, and assure energy efficiency, thus becoming ideal for factories, data centers, malls, and large buildings that aim at long-term HVAC efficiency.
Key Features of Eco-Friendly AC Condenser Fogging System
- High-pressure fogging system for consistent mist delivery
- Corrosion-resistant stainless steel construction for durability
- Low-maintenance design for easy long-term operation
- Adjustable mist output for precise control
- Quick installation compatible with existing HVAC setups
- Reliable performance in extreme weather conditions
- Suitable for large-scale commercial and industrial HVAC applications
- Enhances condenser lifespan by reducing heat stress
Technical Specification
| Parameter | Details |
|---|---|
| System Type | High-Pressure Adiabatic Pre-Cooling |
| Operating Pressure | 70 – 100 bar (1,000 – 1,450 PSI) |
| Atomization (Droplet Size) | 5 – 15 microns (Flash Evaporation) |
| Cooling Efficiency | 10°C – 15°C reduction in intake air temp |
| Energy Savings | 20% – 30% reduction in compressor power draw |
| Activation Threshold | > 30°C (86°F) ambient dry-bulb temperature |
| Water Consumption | 0.05 – 0.10 LPM per nozzle (variable by orifice) |
| Evaporation Rate | > 98% (Ensures fins remain dry) |
Benefits
Key Advantages of Our Fogging System for AC Condensers
- Lowers ambient temperature by five to fifteen degrees. Helps AC condensers cool faster and operate efficiently.
- Improves humidity balance in hot, dry environments. Supports stable condenser performance during extreme outdoor conditions.
- Reduces dust and airborne particles effectively. Protects condenser coils from buildup and frequent cleaning needs.
- Minimizes thermal stress on critical components. Extends overall AC condenser lifespan and reliability.
- Lowers power consumption during peak operation. Supports energy-efficient and cost-saving HVAC performance.
- Delivers uniform cooling across condenser areas. Prevents hot spots and uneven heat rejection.
- Operates with low water usage. Ensures sustainable cooling without unnecessary resource waste.
Applications
Applications of Fogging Systems for AC Condensers
Commercial Buildings
Reduce ambient air temperature around condenser units. Enhance AC efficiency for reliable, continuous indoor cooling performance.
Industrial Factories
Protect condenser coils from dust and heat. Maintain stable HVAC operation under heavy industrial loads efficiently.
Data Centers
Prevent condenser overheating during peak usage. Ensure continuous optimal cooling for servers and sensitive electronic equipment.
Shopping Malls
Minimize condenser strain and energy consumption. Deliver consistent indoor comfort for shoppers and staff throughout the day.
Hospitals
Stabilize AC performance in critical areas. Enhance cooling efficiency to protect sensitive medical equipment from heat.
Warehouses
Improve air circulation around condenser units. Protect stored goods from excessive heat and dust accumulation effectively.
Hotels & Resorts
Maintain efficient condenser performance consistently. Reduce energy usage while providing comfortable indoor temperatures for guests.
Educational Institutions
Optimize HVAC systems for classrooms and halls. Lower compressor strain while ensuring a healthy learning environment.
Working Process
How High-Pressure Fogging Systems Work for AC Condensers?
-
01
High-Pressure Pumping
Pumps water at high pressure for effective fogging
-
02
Precision Nozzle Design
Nozzles break water into ultra-fine cooling droplets
-
03
Uniform Mist Coverage
Mist spreads evenly around AC condenser units
-
04
Rapid Heat Absorption
Droplets absorb surrounding heat from hot ambient air
-
05
Instant Evaporation Cooling
Water evaporates instantly and cools the surrounding air
-
06
Lower Intake Air Temperature
Cooler air reaches condenser coils for heat exchange
-
07
Reduced Compressor Load
System reduces compressor strain and energy consumption
Why Choose Us?
Why Humifogg Fogging System for AC Condensers in Coimbatore?
High Quality Materials
We choose premium materials for long-lasting strength. We guarantee the AC condenser's superior cooling ability.
After-Sales Maintenance
We provide planned inspections and preventative servicing. With little downtime, we make sure systems run effectively.
Warranty & Guarantee
We deliver manufacturer-backed warranty coverage on all systems. We protect client investment with assured performance.
FAQ
Common Queries About Fogging System for AC Condensers
The system integrates easily with existing AC units or standalone setups, requiring minimal modifications.
A fogging system lowers ambient air temperature around the condenser, allowing faster heat release and improved cooling performance.
Yes, it works with commercial, industrial, and rooftop condensers, enhancing efficiency without affecting normal operation.
Yes, it maintains effective cooling even during peak temperatures, preventing condenser overheating and energy spikes.
Yes, our AC condenser fogging systems comes with manufacturer-supported warranty coverage for dependable performance.
Yes, we offer after-sales support, including AMC alternatives to gurantee flawless operation and long life of the system.
